Installation InstructionsDescription

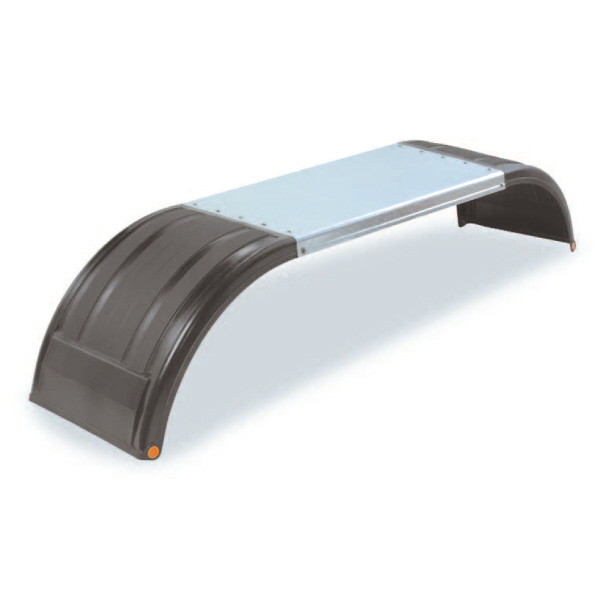

4 – Poly Curve – Part #10044364 (Legacy Part #650NC-IT)
2 – Center section – Part #10044367 (Legacy Part #650NF-IT-ALUZINC)
2 – Fixing Kit – Part Number 650FX
1. CHOOSE YOUR MOUNTING TUBES…
10040466
• 2 – 1 5/8″ x 30″ Offset single bolt stainless steel mounting tubes
• 2 – Anti slip washer
• 2 – Tube end cap (fitted)
• 2 – Stainless steel washer and nut
10040467
• 2 – 1 5/8″ x 30″ Offset single bolt black e-coat mounting tubes
• 2 – Anti slip washer
• 2 – Tube end cap (fitted)
• 2 – Zinc plated washer and nut
2. CHOOSE YOUR FIXING BRACKETS…
IT42-4
• 4 x 1 5/8″ IT brackets
• 4 x IT back plates
• 1 x All hardware
IT42HD-4 (Heavy Duty)
• 4 x 1 5/8″ Heavy duty IT brackets
• 4 x IT back plates
• 1 x All hardware
HTE100
-
Brackets for Poly fendersFenders and BracketsPart # 10040459 (Legacy Part # HTE100)
Bracket Support Kit for Poly Half Tandem & Full Tandem Fenders
• 2 – Riser plates
• 4 x 1-5/8″ clamps
• 2 – Balota anti-vibration wasers
• 1 x hardware
