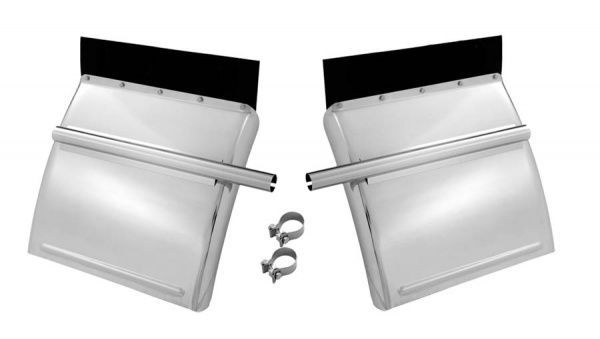

Part #10040775 (Legacy Part Number # SS211PA2)

Part # 10040379 (Legacy Part #H2373US)

Tube-Style Fender Brackets

Specifications:

Applications: 3-Up
Fender Type: Poly
Front and Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Stainless Steel Tube / Two (2) T373US
Tube: Undrilled
Hardware / Material, Quantity and Part Number: Stainless Steel U-Bolts / Two (2) P100HS-1 Each Contains Three (3) U-Bolts, Lock Nuts and Washer Plates
Tube Mount / Length, Mounting Hole, Finish, Material: 30.000″, .750″ Through-Hole, …

Brackets for Metal Fenders Fenders and Brackets

Part # 10040392 (Legacy Part #L200TS)

Triangle Fender Brackets

Specifications:

Application: Single Axle Fender Mounting Kit
Frame Mount: Single-Bolt Post Frame Mount
Bracket Type: Four (4) B610TS Stainless Steel Paddle Brackets
Bracket Quantity: 4
Finish: Bright 304 14 Gauge Stainless Steel
Hardware / Material, Quantity and Part Number: Four (4) X2900; Four (4) TS100H-1 (Contains Six (6) Cap Screws and Lock Washers and Three (3) Washer Plates; Four (4) 400118-01

Fenders and Brackets Metal Fenders & Brackets

Part # 10040740 (Legacy Part # AR100-60-1)

Aluminum Single Axle Fenders

Specifications:

Finish: Mill Finish .090″ Aluminum
Style: 3-Rib w/Beaded Edge
Overall Length: 60″
Fender Opening: 38″
Wheel Size: 16.5″
Application: Single Wheel
Packaging: Cardboard Wrapped Individual

Fenders and Brackets Poly Fenders & Brackets

Part #10040817 (Legacy Part # PS221PA6)

Low Tube Mount Quarter Fender

Specifications:

Handedness: Left
Packaging: Boxed Individual
Contents: Includes Tube, Mounting Clamp, Top Flap, and Top Flap Mounting Hardware
Fender Finish: Black High Density UV Resistant Poly
Mounting Tube and Clamp Finish: Galvanized 18 Gauge Carbon Steel
Top Flap Hardware: Zinc Plated Steel
Top Flap Details: Black Poly, Plain, No Logo
