Part # 10040407 (Legacy Part #K4364US)

Part # 10040407 (Legacy Part #K4364US)

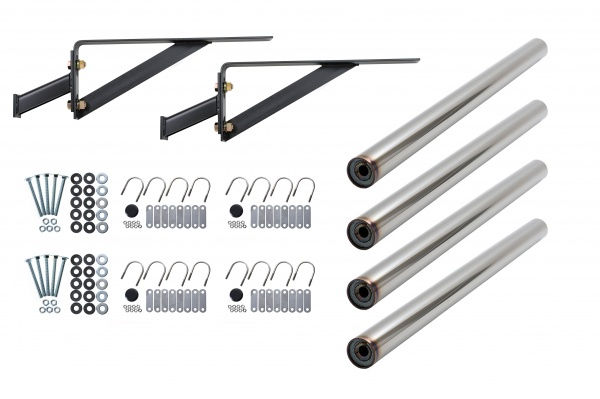

Tubular Fender Brackets

Specifications:


Applications: 2-Rib, 4-Rib, Smooth, Corrugated
Fender Type: Aluminum or Stainless Steel
Front and Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Stainless Steel Tube / Four (4) T364US
Tube: Undrilled
Hardware / Material, Quantity and Part Number (A): Stainless Steel U-Bolts / Four (4) CS100H-1 Each Contains Four (4) U-Bolts, Lock Nuts and Washer Plates
Hardware / Material, Quantity and Part Number (B): Stainless Steel Carriage Bolts / Two (2) B4HS-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers
Tube Mount / Length, Mounting Hole, Finish, Material: 30.000″, .625″ Through-Hole, Bright 430, 12 Gauge Stainless Steel
Tube Length: 30.000″
Center Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Black E-Coat Carbon Steel, Unhanded with 3.5″ Vertical Adjustment, Two (2) B900S


Installation Instructions

SKU: 10040407 Categories: , , ,

Description

BettsHD's fender mounting bracket kits for full tandem semi trucks include everything you need. Contact us to learn more.
