Part # 10040418 (Legacy Part #K4364UG)

Part # 10040418 (Legacy Part #K4364UG)

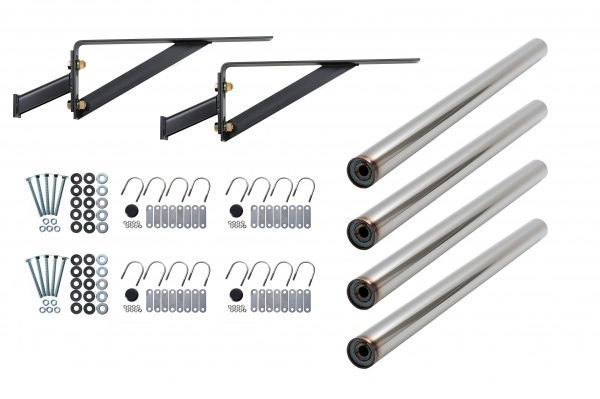

Tube-Style Fender Brackets

Specifications:


Applications: 2-Rib, 4-Rib, Smooth, Corrugated
Fender Type: Galvanized Steel
Front and Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Galvanized Tube / Four (4) T364UG
Tube: Undrilled
Hardware / Material, Quantity and Part Number (A): Galvanized U-Bolts / Four (4) CG100H-1 Each Contains Four (4) U-Bolts, Lock Nuts and Washer Plates
Hardware / Material, Quantity and Part Number (B): Galvanized Carriage Bolts / Two (2) B4H-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers
Tube Mount / Length, Mounting Hole, Finish, Material: 30.000″, .625″ Through-Hole, Galvanized, 12 Gauge Carbon Steel
Tube Length: 30.000″
Center Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Black E-Coat Carbon Steel, Unhanded with 3.5″ Vertical Adjustment, Two (2) B900G


Installation Instructions

SKU: 10040418 Categories: , , , ,

Description

BettsHD's semi truck fender mounting brackets are designed to fit any make/model on the road. Contact us to learn more.
