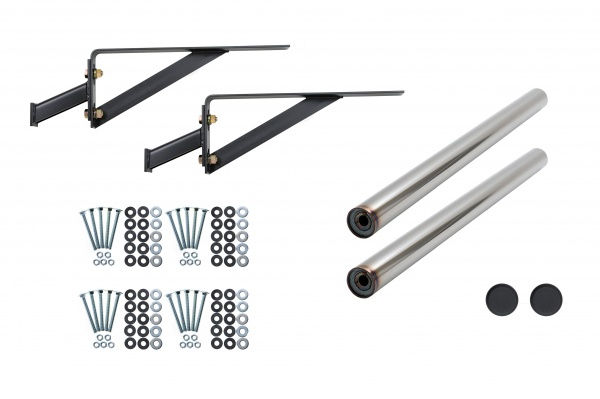

Part # 10040399 (Legacy Part #K3362US)

Tube-Style Fender Brackets

Specifications:

Applications: 2-Rib, 4-Rib, Smooth, Corrugated
Fender Type: Aluminum or Stainless Steel
Front and Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Stainless Steel Tube / Two (2) T362PS
Tube: Undrilled
Hardware / Material, Quantity and Part Number (A): Stainless Steel Carriage Bolts / Two (2) B4HS-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers
Tube Mount / Length, Mounting Hole, Finish, Material: 30.000″, .625″ Through-Hole, Bright 430, 12 Gauge Stainless Steel
Hardware / Material, Quantity and Part Number (B): Stainless Steel Carriage Bolts / Two (2) B4HS-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers
Tube Length: 30.000″
Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Black E-Coat Carbon Steel, Unhanded with 3.5″ Vertical Adjustment, Two (2) B900S
Front Bracket Type / Material, Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Stainless
