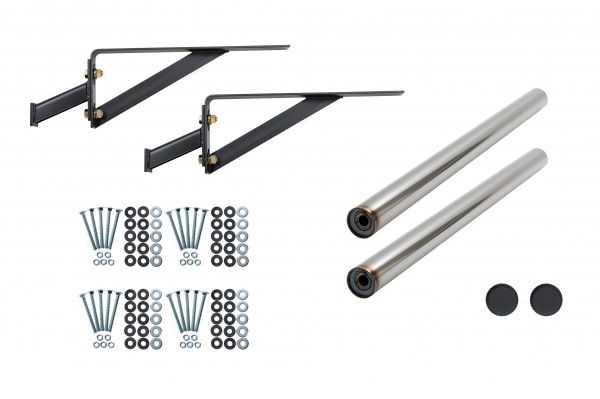

Installation InstructionsDescription
Hardware / Material, Quantity and Part Number (A):
Galvanized Carriage Bolts — Two (2) B4H-1; each contains five (5) carriage bolts, nuts, flat and lock washers.
Hardware / Material, Quantity and Part Number (B):
Galvanized Carriage Bolts — Two (2) B4H-1; each contains five (5) carriage bolts, nuts, flat and lock washers.
Tube Mount / Length, Mounting Hole, Finish, Material:
30.000″ length, 0.625″ through-hole, galvanized, 12-gauge carbon steel
Tube Length: 30.000″
Rear Bracket Type / Quantity and Part Number:
Single-bolt frame mount, black e-coat carbon steel, unhanded with 3.5″ vertical adjustment — Two (2) B900G
Front Bracket Type / Material, Quantity and Part Number:
Single-bolt frame mount, undrilled galvanized tube — Two (2) T362UG
-
Mounting HardwarePart # 10038892 (Legacy Part #B4H-1)
Fender Mounting Harware
Specifications:
Finish: Galvanized Steel
Description: Carriage Bolt Hardware Kit
Application: General Purpose Fender Installation – Contents will install
one (1) predrilled mounting tube -
Fender Mounting Tubes
Part # 10040293 (Legacy Part #T362UG)
Fender Mounting Tubes
Specifications:
Application: General Use / Designed for Heavy-Duty Service on
Tractors
Finish: Galvanized 12 Gauge Carbon Steel
Length: 30″
Type: Single-Bolt Frame Mount
… -
Adjustable Center Brackets
Part # 10040325 (Legacy Part #B900G)
Adjustable Center Brackets
Specifications:
Application: General Use / Rear Bracket for Half Tandem or Center Bracket
for Full, Tri and Longer Tandems
Finish: Black E-Coated Carbon Steel
Handedness: Unhanded
…
