Part # 10040363 (Legacy Part #K2362UG)

Part #10040815 (Legacy Part # PS211PA5)

Standard Tube Mount Quarter Fender

Specifications:

Handedness: Right
Packaging: Boxed Individual
Contents: Includes Tube Mounting Clamp, Top Flap and Top Flap Mounting Hardware
Fender Finish: Black High Density UV Resistant Poly
Mounting Tube & Clamp Finish: 18 Gauge Black E-Coat / Galvanized Carbon Steel
Top Flap Hardware: Zinc Plated Steel
Top Flap Details: Black Poly, Plain No Logo

Tandem Axle Fender Brackets Fenders and Brackets

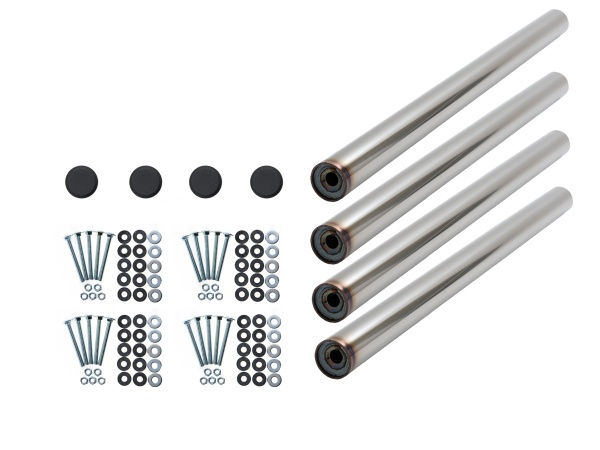

Part # 10040371 (Legacy Part #H4274US)

Tube-Style Fender Brackets

Specifications:

Applications: 2-Rib, 4-Rib, Smooth, Corrugated
Fender Type: Aluminum or Stainless Steel
Tube: Undrilled
Hardware / Material, Quantity and Part Number (A): Stainless Steel U-Bolts / Two (2) CS100H-1 Each Contains Four (4) U-Bolts, Lock Nuts and Washer Plates
Hardware / Material, Quantity and Part Number (B): Stainless Steel Carriage Bolts / One (1) B4HS-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat …

Single Axle Brackets Fenders and Brackets

Part # 10040346 (Legacy Part #H2274UG)

Tube-Style Fender Brackets

Specifications:

Applications: 2-Rib, 4-Rib, Smooth, Corrugated
Fender Type: Galvanized Steel
Front and Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Galvanized Tube / Two (2) T274UG
Tube: Undrilled
Hardware / Material, Quantity and Part Number: Galvanized U-Bolts / Two (2) CG100H-1 Each Contains Four (4) U-Bolts, Lock Nuts and Washer Plates
Tube Mount / Length, Mounting Hole, Finish, Material: 26.500″, …
