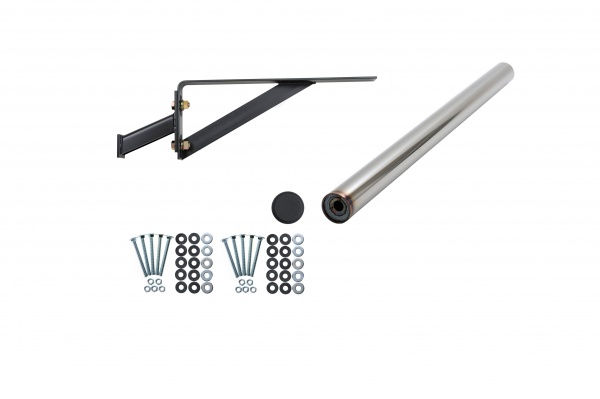

Applications: 2-Rib, 4-Rib, Smooth, CorrugatedFender Type: Aluminum or Stainless SteelTube: UndrilledHardware / Material, Quantity and Part Number (A): Stainless Steel Carriage Bolts / One (1) B4HS-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock WashersHardware / Material, Quantity and Part Number (B): Stainless Steel Carriage Bolts / One (1) B4HS-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock WashersTube Mount / Length, Mounting Hole, Finish, Material: 30.000″, .625″ Through-Hole, Bright 430, 12 Gauge Stainless SteelTube Length: 30.000″Rear Bracket Type / Quantity and Part Number: Single-Bolt Frame Mount, Black E-Coat Carbon Steel, Unhanded with 3.5″ Vertical Adjustment, One (1) B900SFront Bracket Type / Material, Quantity and Part Number: Single-Bolt Frame Mount, Undrilled Stainless Steel Tube / One (1) T362US
Application: General Use / Designed for Heavy-Duty Service on TractorsFinish: Bright 430 12 Gauge Stainless SteelType: Single-Bolt Frame MountDrilling: UndrilledMounting Hole Diameter: .625″ Through-HoleHardware: Stainless Steel Carriage Bolts / One (1) B4HS-1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers, One (1) CP12
Application: General Use / Rear Bracket for Half Tandem or Center Bracket for Full, Tri and Longer TandemsFinish: Black E-Coated Carbon SteelHandedness: UnhandedHardware: Stainless Steel Carriage Bolts / One (1) B4HS1 Each Contains Five (5) Carriage Bolts, Nuts, Flat and Lock Washers
Application: Single Axle Fender Mounting KitFrame Mount: Single-Bolt Post Frame MountBracket Type: Four (4) B610TS Stainless Steel Paddle BracketsBracket Quantity: 4Finish: Bright 304 14 Gauge Stainless SteelHardware / Material, Quantity and Part Number: Four (4) X2900; Four (4) TS100H-1 (Contains Six (6) Cap Screws and Lock Washers and Three (3) Washer Plates; Four (4) 400118-01
Finish: Black Powder Coated 18 Gauge Carbon Steel
Mounting Tube & Clamp Finish: 18 Gauge Black E-Coat / Galvanized Carbon Steel
Mounting Option: None
Top Flap Hardware: Zinc Plated Steel
Packaging: Boxed – Kit
Contents: Includes Tube Mounting Clamps, Top Flaps and Top Flap Mounting Hardware
Top Flap Details: Black Poly, Plain No Logo
Handedness: Both
